Manufacturer of
plastic processing machines


ProductsExtruders 20 to 30mm › Forced feed roller extruder

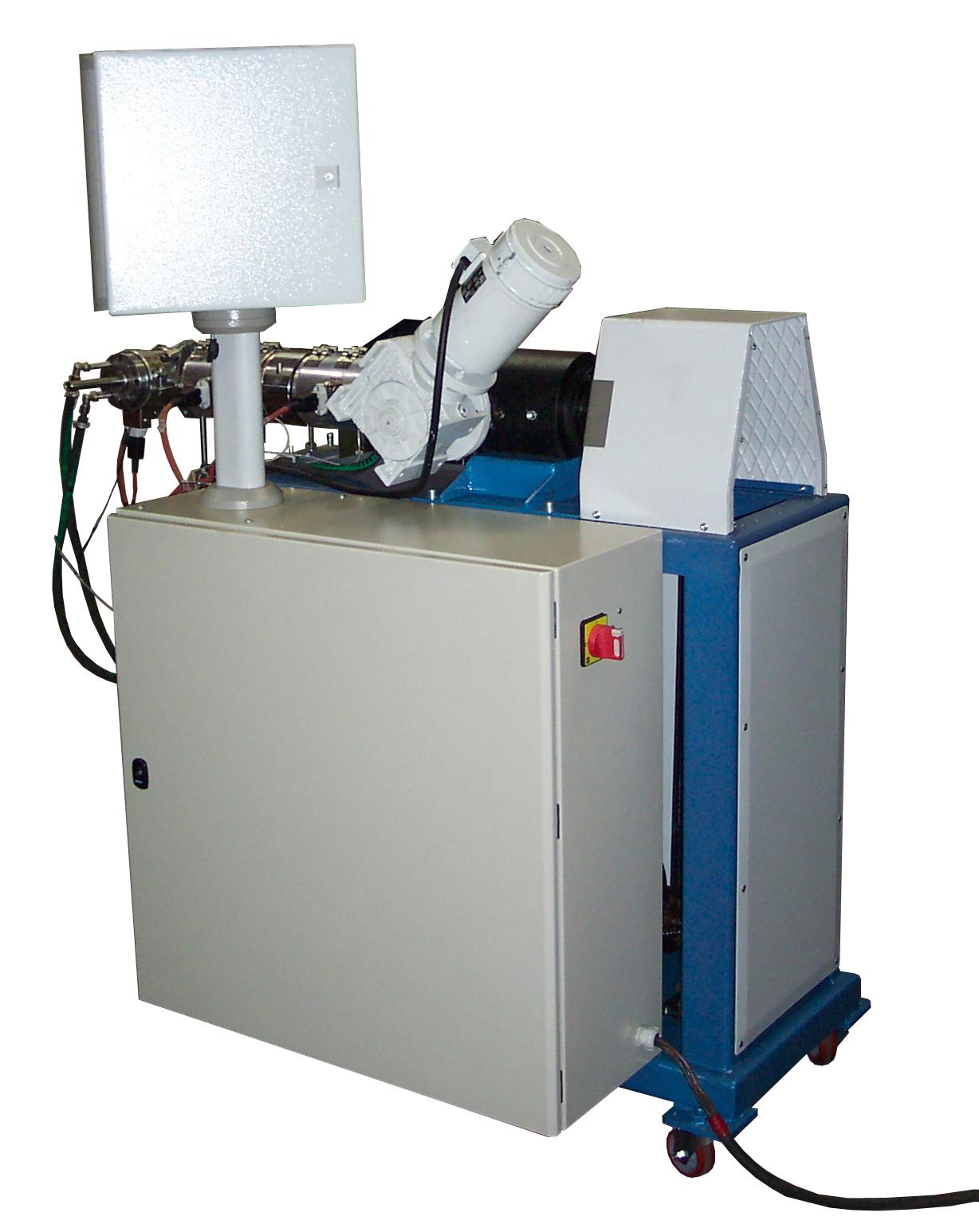

Extruder with forced feed roller
Extruder with forced feed roller
Extruder with forced feed roller (back view)
Extruder with forced feed roller (back view)

Forced feed roller extruder

Characteristics:


-welded sheet metal frame
-asynchronous drive unit 5,5 kW
-ball-bearing housing and thrust ball
-nitrided body, length 17 L/D
-screw design according to material
-ball-bearing mounted feed roller, driven by a geared motor with variable speed
-bi-conical clamp for the die head
-electrical heating on 2 independant zones on the body, cooling by circulating water coil.
-material pressure sensor
-material temperature sensor, low mass  thermocouple J
-mounted on 4 casters
-total power 8 kW 50 Hz
-total weight 250 Kg
